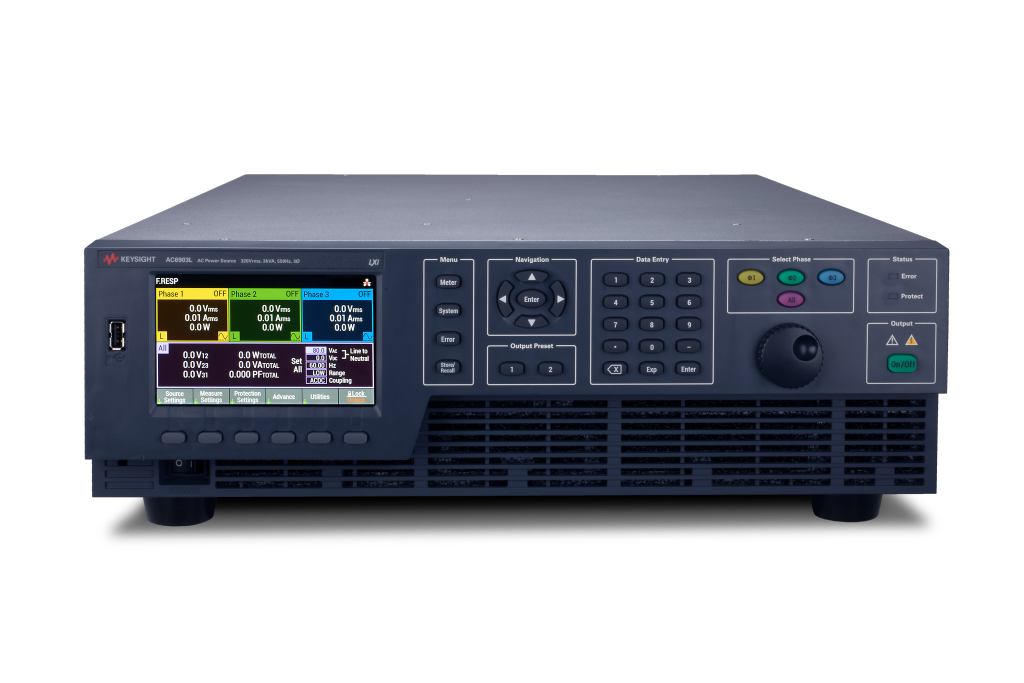

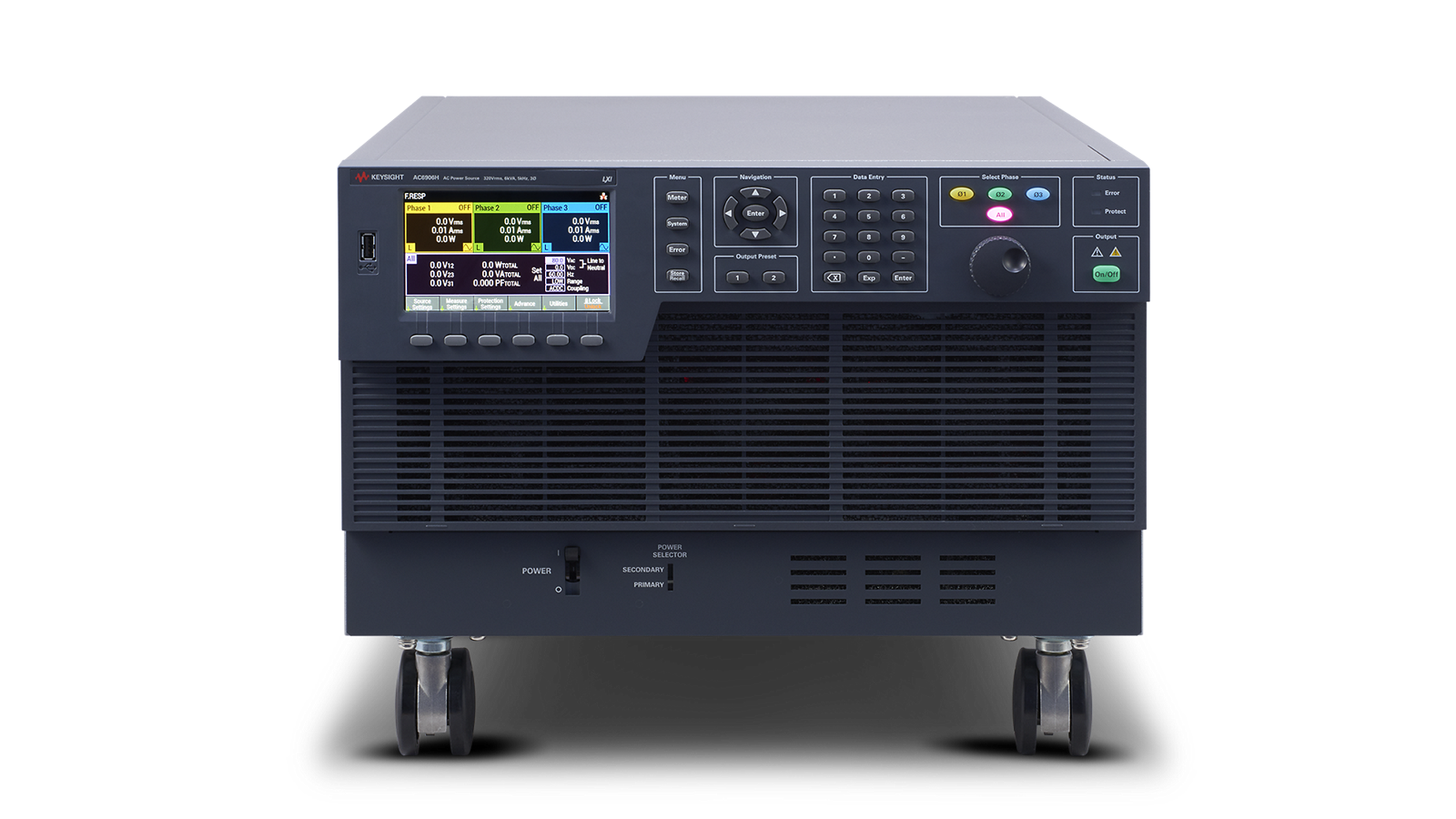

AC6900 Series Three-Phase AC Power Sources

3 kVA to 18 kVA three-phase AC power source and analyzer


A Complete Three-Phase AC Power Solution

Keysight’s AC6900 Series AC power sources provide a complete AC and DC power solution by combining the capabilities of a multimeter, harmonic analyzer, and power analyzer in one instrument. You can easily produce DC power, either alone or as a DC offset to an AC waveform, in a compact form factor.

  • AC, DC, or AC plus DC mode
  • maximum AC voltage at 320 Vrms
  • frequency up to 5 kHz
  • single-phase, single-phase three-wire, or three-phase four-wire connections
  • power line disturbance tests
  • harmonic analysis
  • built-in waveform generation
  • USB, LAN (LXI Core), and optional GPIB connectivity


The AC6900 Series is ideal for testing avionics equipment that nominally operates at 400 Hz, 800 Hz, or up to 5,000 Hz and meets RTCA DO-160 and MIL-STD-704 standards. PathWave avionics test suite simplifies pre-compliance testing.

  • Connect and operate your instruments and execute tests remotely.
  • Accelerate power input for pre-compliance testing.
  • Meet commercial and military standards with extensive test coverage.
  • Configure test plans to fit your needs.
  • Generate test reports for post-analysis by downloading to a .csv file format.
